Gable, gables hafu


Gable, gables 破風 hafu

Also written 搏風. Also called hafu-ita 破風板.
A bargeboard. Straight or curved boards laid flat against the ridge ends and purlin ends on the gable sides of a building. They are finishing members in the gables of gable roof *kirizuma yane 切妻屋根 or hip-and-gable roof *irimoya yane 入母屋屋根.

They form a triangular space called the gable pediment tsumagawa 妻側. The apex formed by the joining of two bargeboards are called *hafuogami 破風拝. The bottoms of each bargeboard is called *hafu kojiri 破風木尻. The middle part is called koshi 腰 meaning hip, waist or haunch.

chidori hafu 千鳥破風,
sugaruhafu 縋破風,
irimoya hafu 入母屋破風,
chigi 千木,
aori hafu 障泥破風
source : jaanus

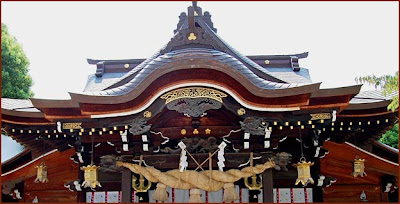

karahafu, kara hafu, kara-hafu 唐破風 "Chinese Gable"

An undulating bargeboard.
The shape of a karahafu flows downward from the top center with convex-curves on each side. As the roof descends the curves change direction and form concave curves that level off at the ends or turn upward to varying degrees. The lower center edge, just about where the concave curves begin has a large board that is sometimes cusped *ibara 茨.

Occasionally a gable pendant *gegyo 懸魚 is hung at the center top and called by its special name *unokedooshi 兎毛通. All the rafters curve to the same degree as the bargeboard. They are called ibaradaruki 茨垂木.

The miniature shrine *Zushi 厨子 in the *Shouryouin 聖霊院 (ca 1278) at Houryuuji 法隆寺, Nara, is believed to be the oldest extant example of karahafu.
The karahafu appeared during the Heian period and is depicted on the picture scrolls of the period as being used for corridors, gates and palanquins.

The term kara 唐 can be translated as meaning 'China' it may instead have connoted elegance and noble appearance. When the undulating gable is used at eave ends it is called nokikarahafu 軒唐破風. It appears above entrances to temple buildings, as gable ends on gates called *hirakaramon 平唐門 and when placed over a gateway entrance parallel to the ridge munagi 棟木, it is called mukaikaramon 向唐門.
Undulating gables are used on the front of a step-canopy *kouhai 向拝.
source : jaanus
